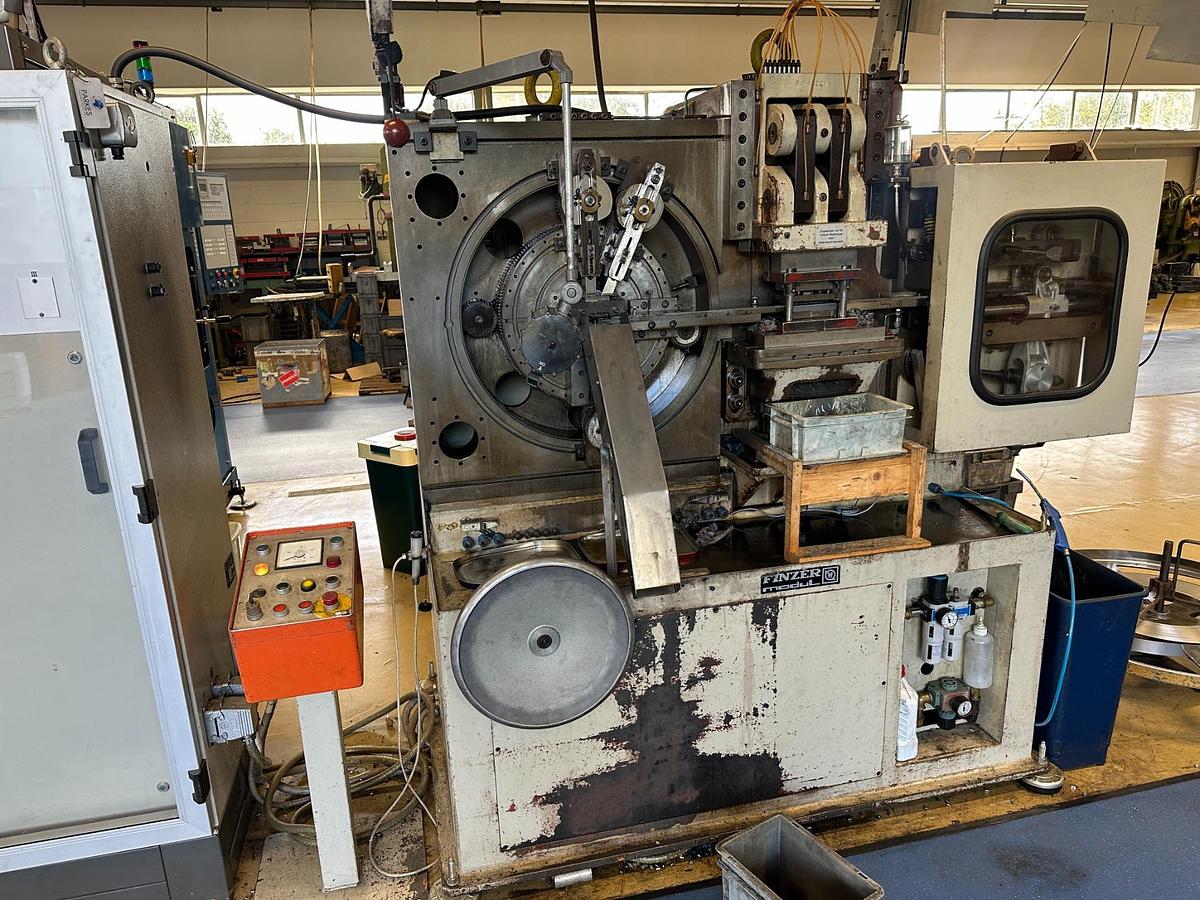

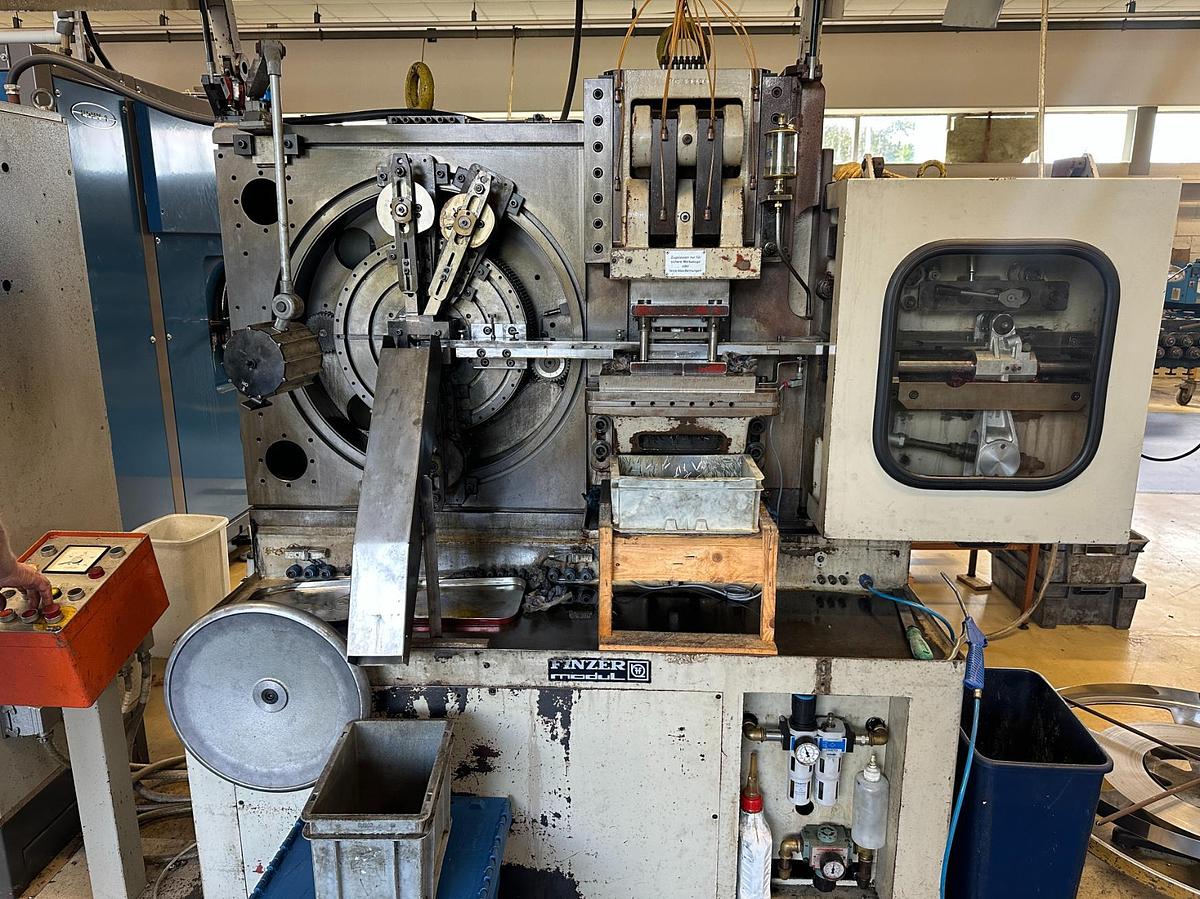

1987 Finzer ZUB 250 Multislide Machine | 250kN 6 Slide

1987 Finzer ZUB 250 Multislide Punching & Forming Machine

Used 1987 Finzer ZUB 250 multislide machine for sale. 250kN press unit, 6 forming slides, manual decoiler and 250mm feed. Very good condition.

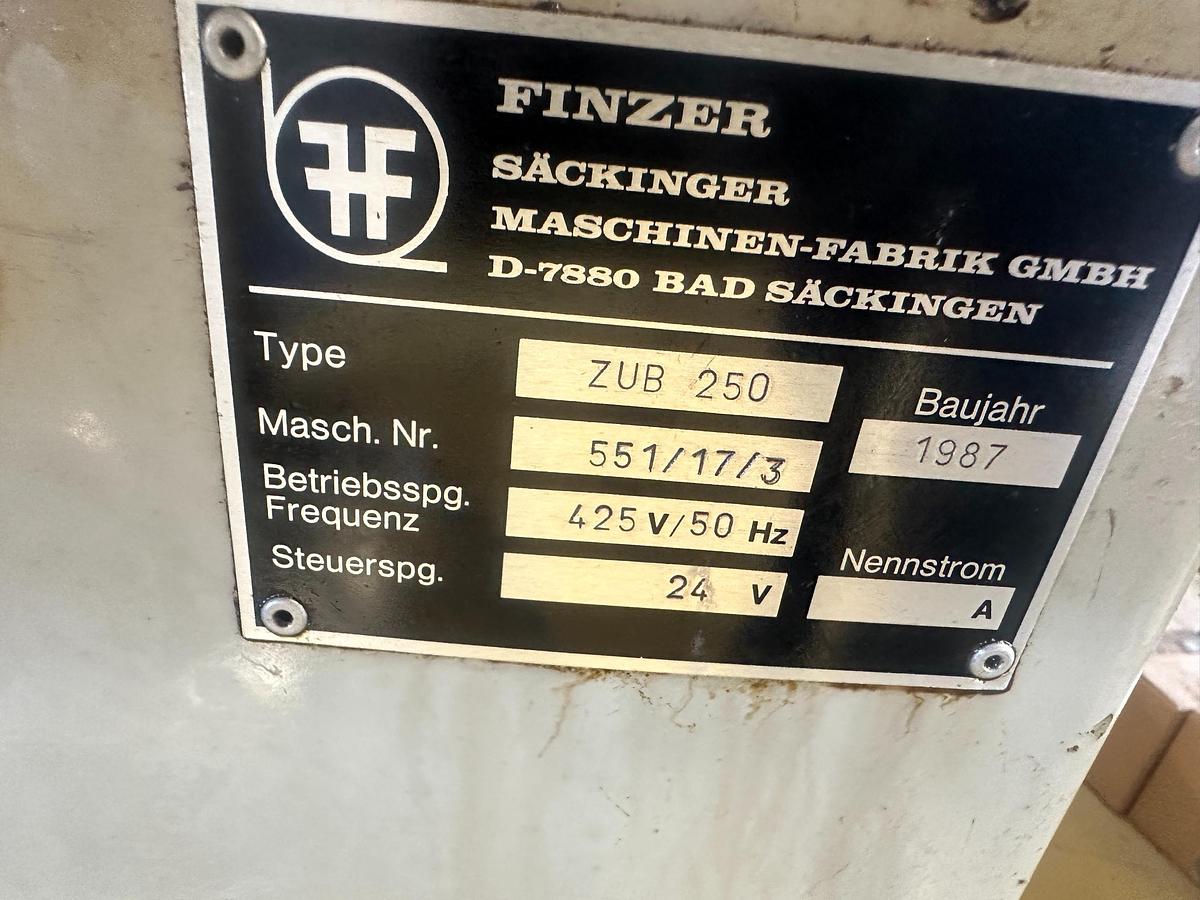

Manufacturer: Finzer

Model: ZUB 250

Machine Type: Multislide Punching & Forming Machine

Year: 1987

Condition: Very Good

Machine Description

The Finzer ZUB 250 is a heavy-duty mechanical multislide stamping, punching and forming machine designed for the high-volume production of complex components from strip and wire.

This machine is equipped with a 250kN / 25-tonne press unit, a set of six forming slides and a manual decoiler, providing a versatile production system capable of combining punching, blanking, bending and forming operations within one production cycle.

Multislide technology is particularly effective for components requiring several bends or forming operations from different directions. Compared with conventional single-slide power presses, the multiple independently arranged forming slides allow complex parts to be produced efficiently with reduced secondary operations.

Main Specifications

Manufacturer: Finzer

Model: ZUB 250

Year: 1987

Machine Type: Multislide Punching & Forming Machine / Stamping & Bending Machine

Press Capacity: Approx. 250kN / 25 tonnes

Number of Forming Slides: 6

Maximum Feed Length: Approx. 250mm

Maximum Strip Width: Approx. 60mm

Maximum Wire Diameter: Approx. 3mm

Forming Slide Capacity: Approx. 30kN per slide

Forming Slide Stroke: Approx. 0–50mm

Maximum Production Speed: Up to approx. 400 strokes/minute, depending on tooling, component and material

Machine Weight: Approx. 4,000kg

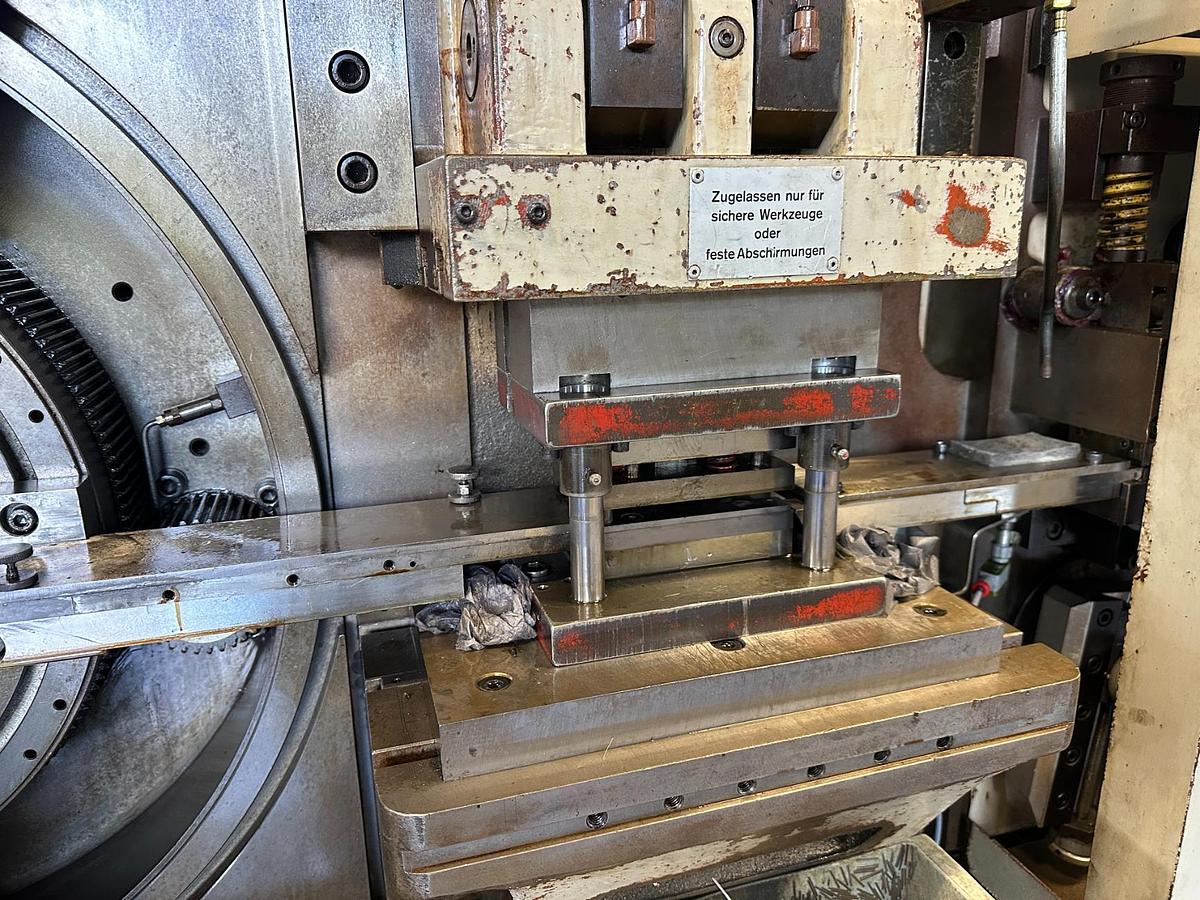

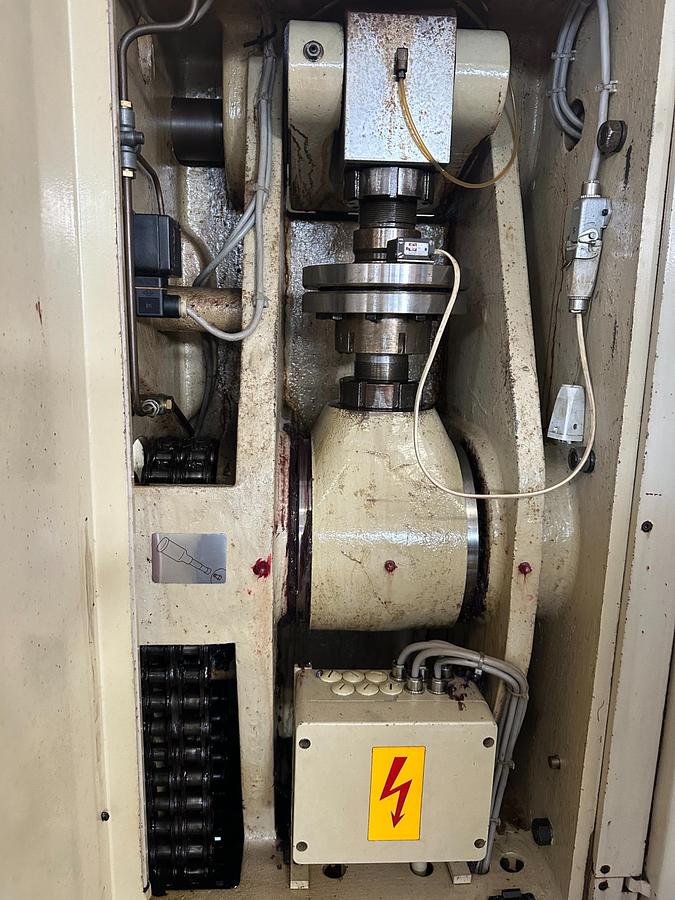

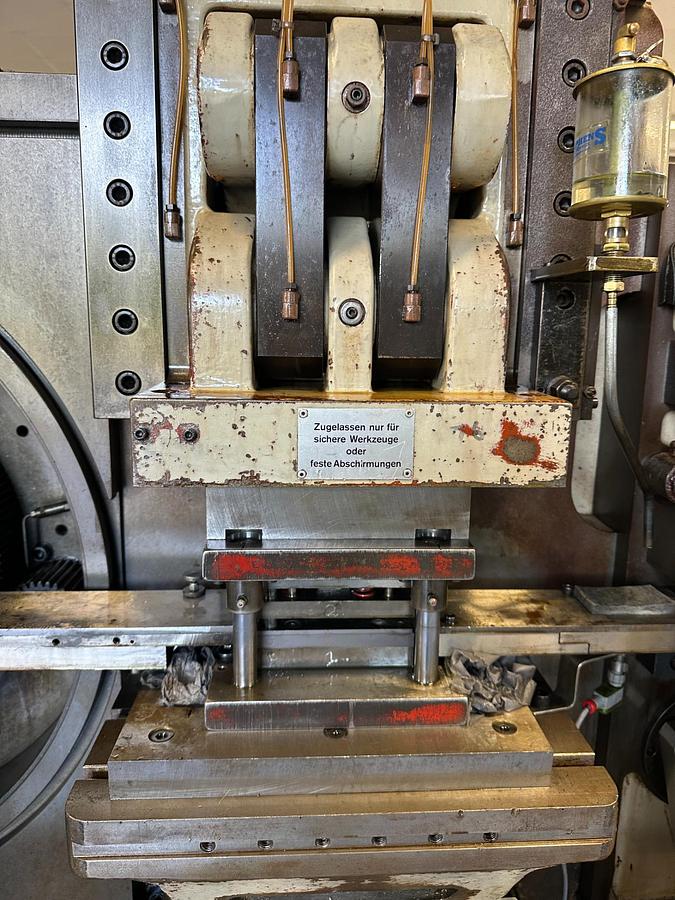

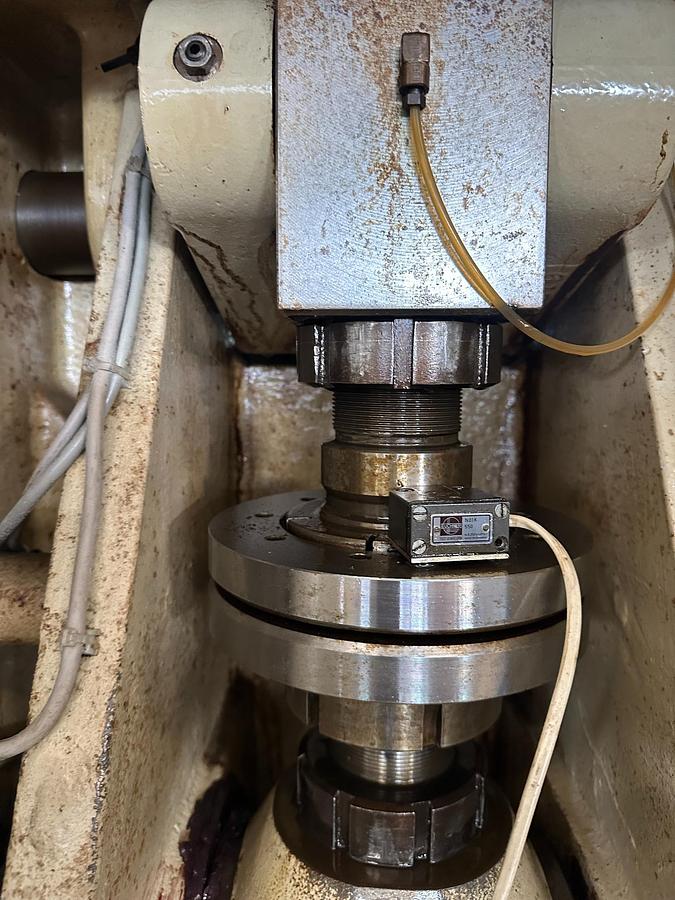

250kN / 25 Ton Press Unit

The machine incorporates an approximately: 250kN / 25-tonne press station

The central press unit can perform operations such as:

• Punching
• Piercing
• Blanking
• Notching
• Cutting
• Coining
• Press forming

The press operation can then be combined with movements from the surrounding forming slides to produce complex finished components in a continuous cycle.

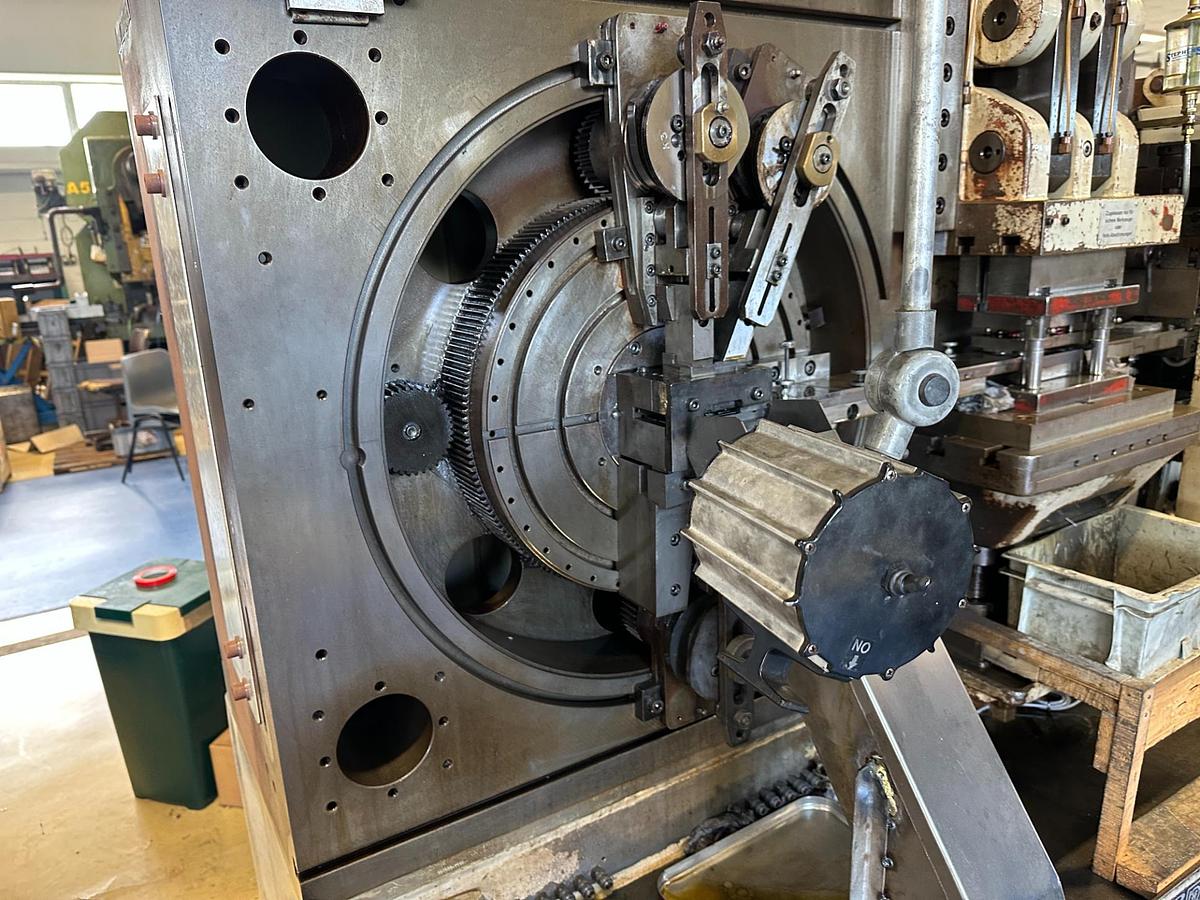

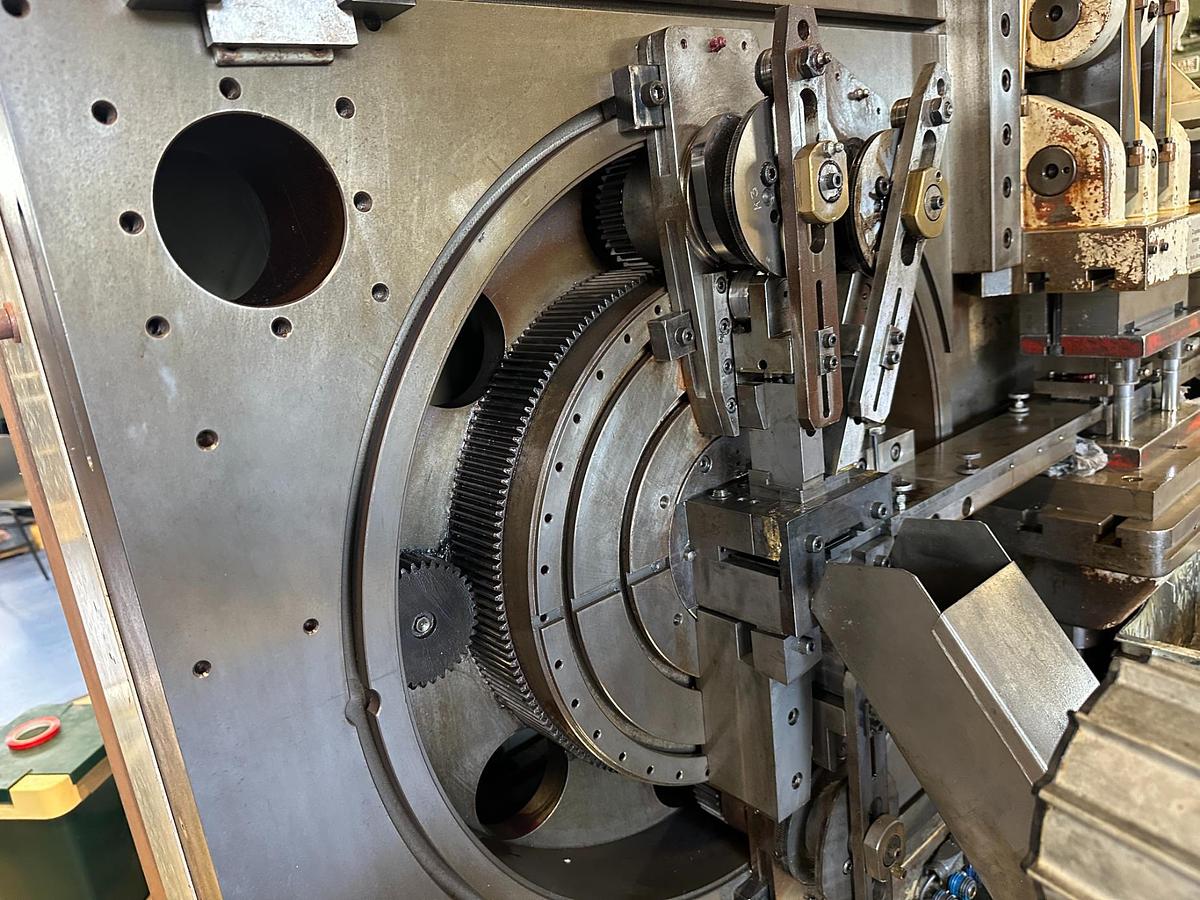

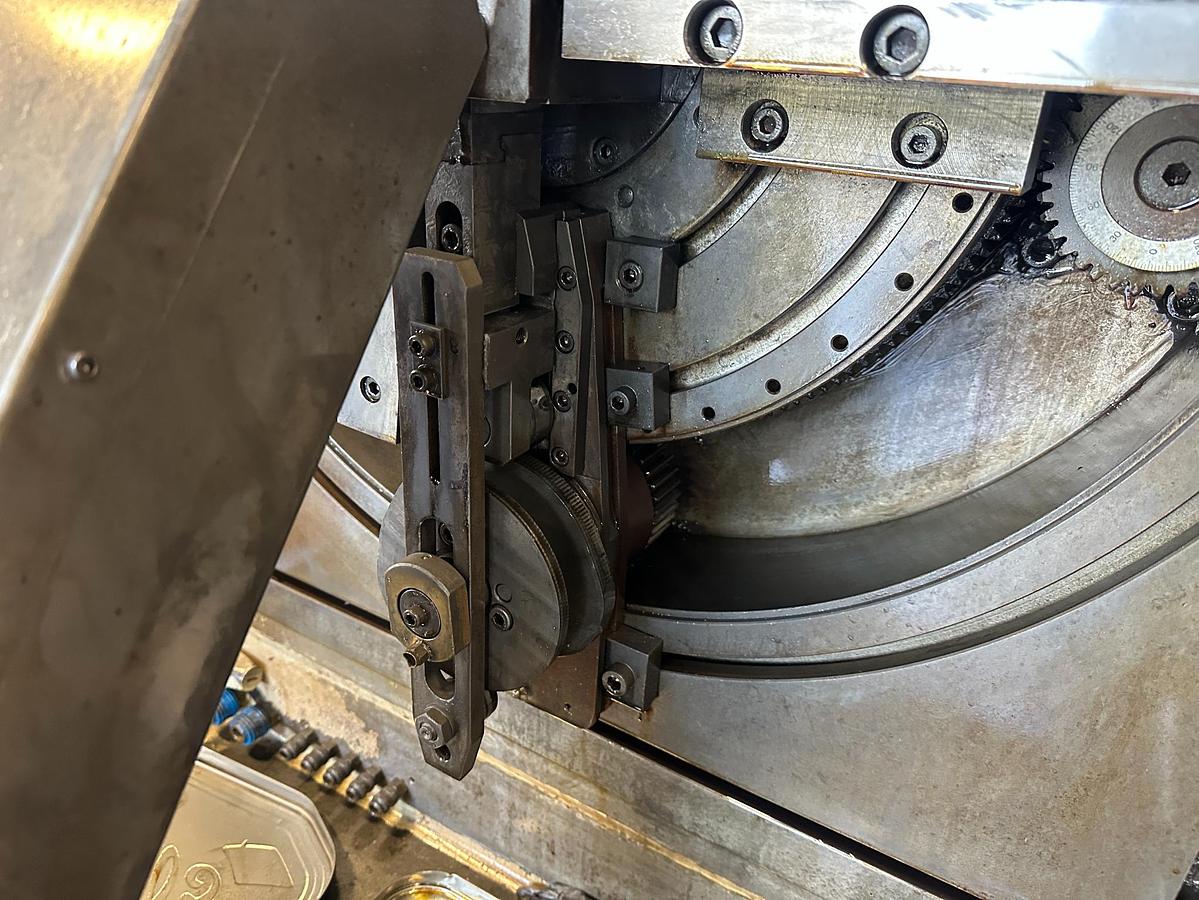

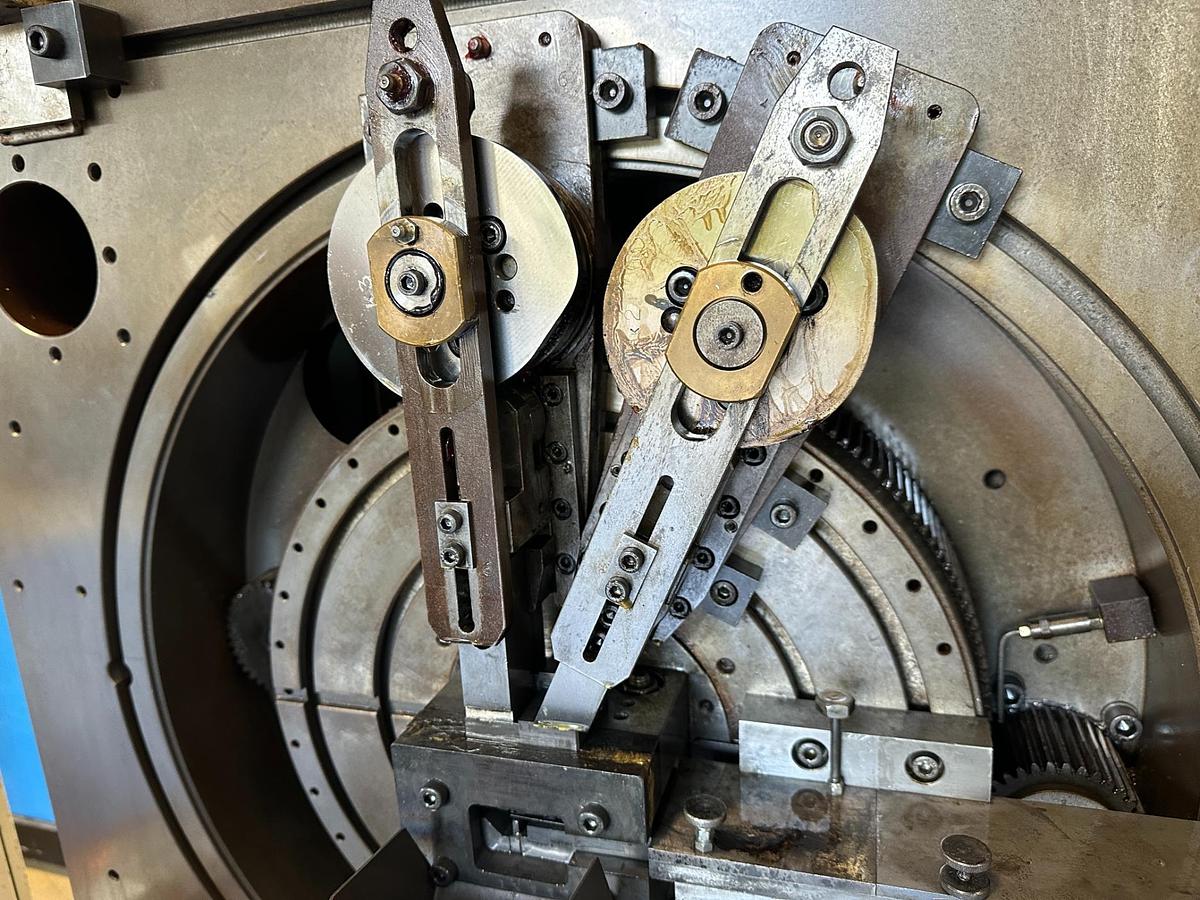

Six Forming Slides

This Finzer is supplied with a complete set of six forming slides.

The multiple-slide arrangement is one of the main advantages of the ZUB system, allowing tooling to approach the component from several directions during the same production cycle.

Published specifications for the ZUB250 indicate approximately:

Forming capacity per slide: 30kN

Slide stroke: Adjustable up to approximately 50mm

The slides can be tooled for sequential bending, forming and positioning operations.

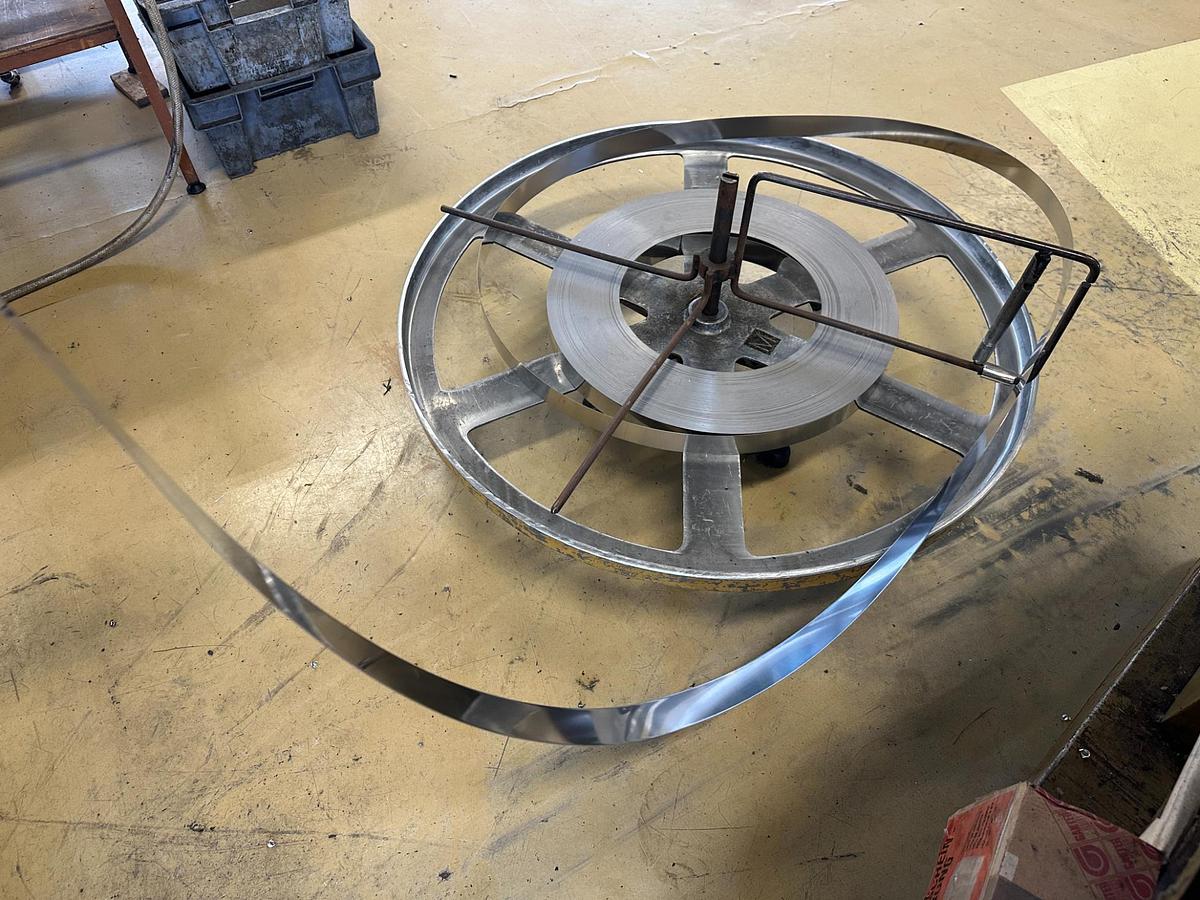

Manual Decoiler Included

The machine is supplied with a manual decoiler for coil-fed production.

Material can be fed from coil into the machine, allowing continuous production of components rather than requiring individually prepared blanks.

This makes the system particularly suitable for high-volume manufacturing from:

• Steel strip
• Spring steel
• Stainless steel
• Brass
• Copper
• Aluminium
• Suitable wire materials

Exact material capability will depend on strip thickness, width, material strength, component geometry and tooling.

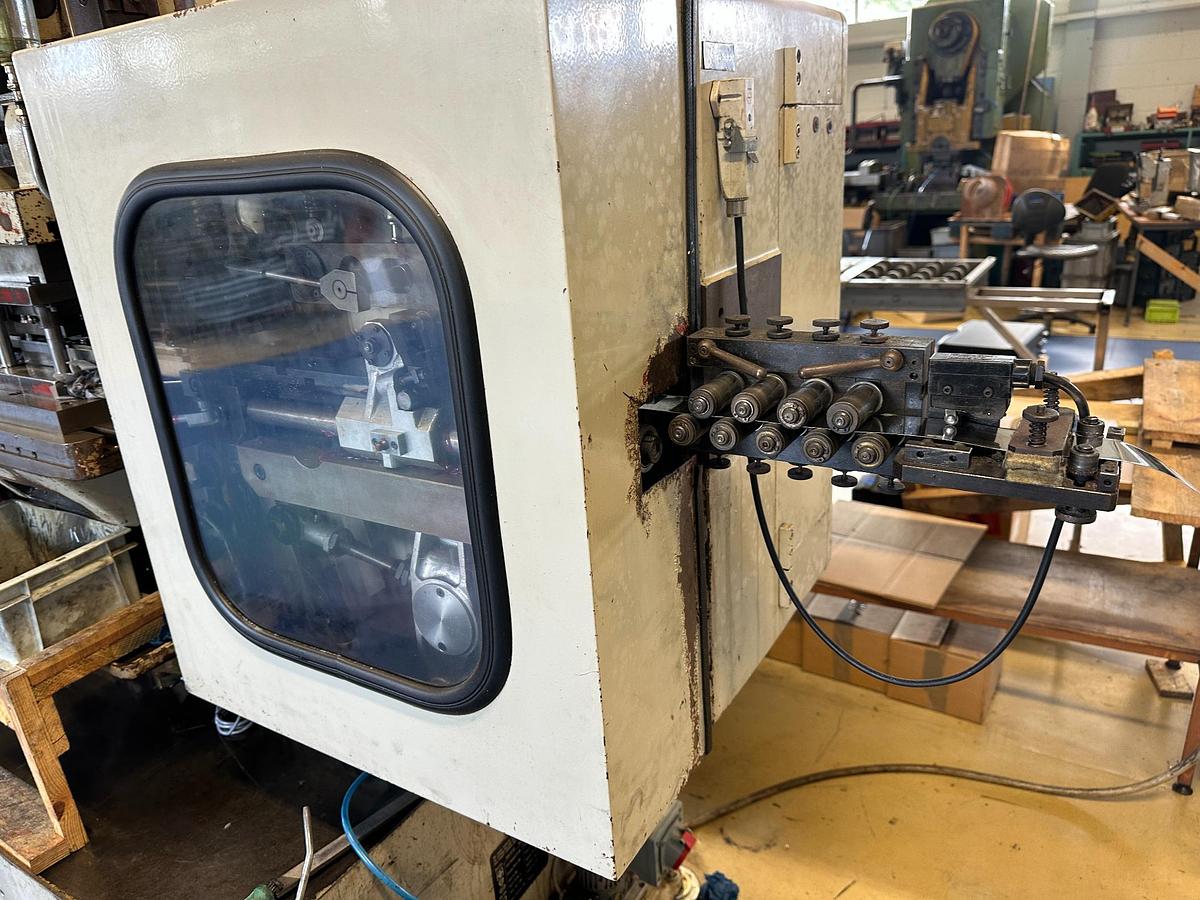

Coil & Strip Feed Capability

Comparable Finzer ZUB250 machines are specified with:

Maximum Strip Width: Approx. 60mm

Maximum Wire Diameter: Approx. 3mm

Maximum Feed Length: Approx. 250mm

Feed length is typically adjustable to suit the individual component and tooling setup.

High-Speed Production

Depending on component design and tooling, period ZUB250 specifications quote operating speeds of approximately:

25–400 strokes per minute

This makes the Finzer particularly suitable for repetitive, high-volume manufacture where several conventional press and forming operations might otherwise be required.

Actual operating speed will depend on the tooling, material, feed arrangement and complexity of the component.

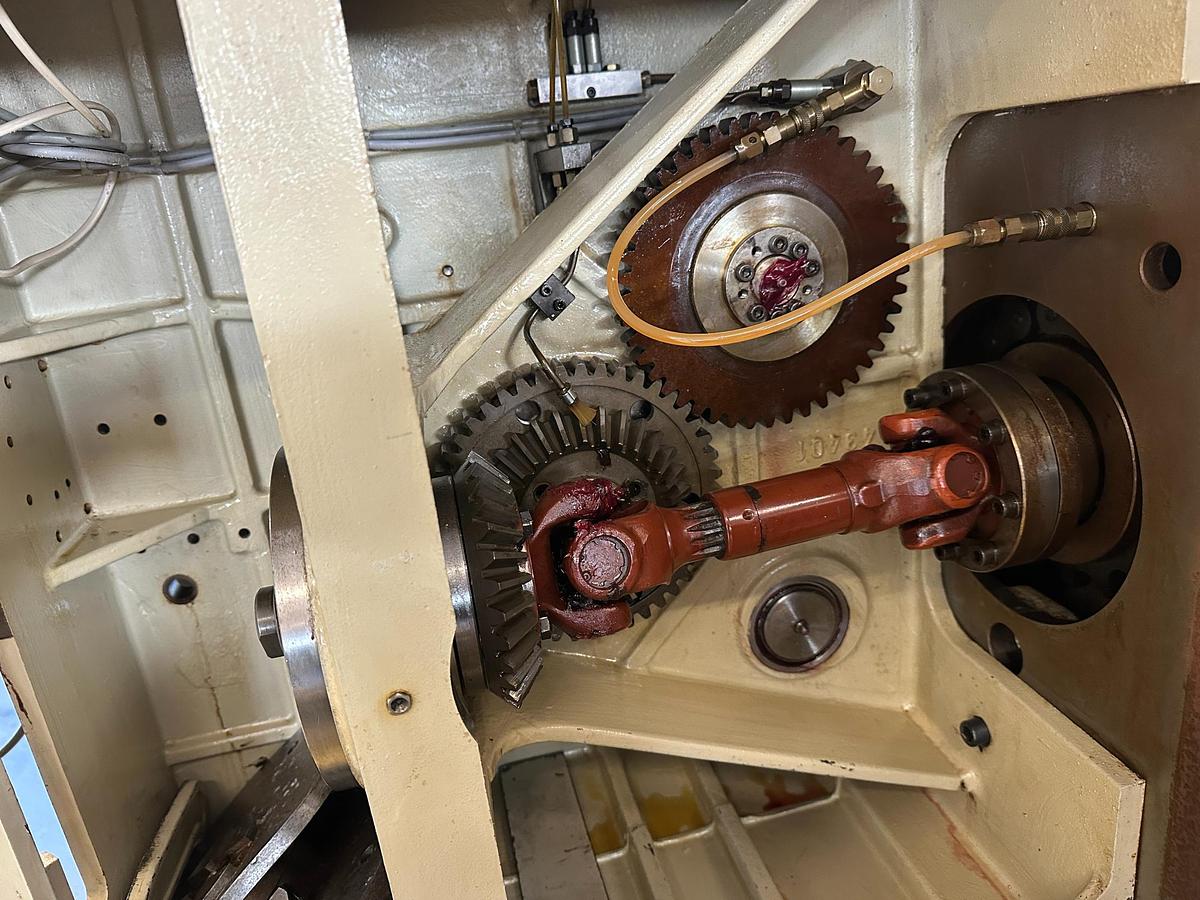

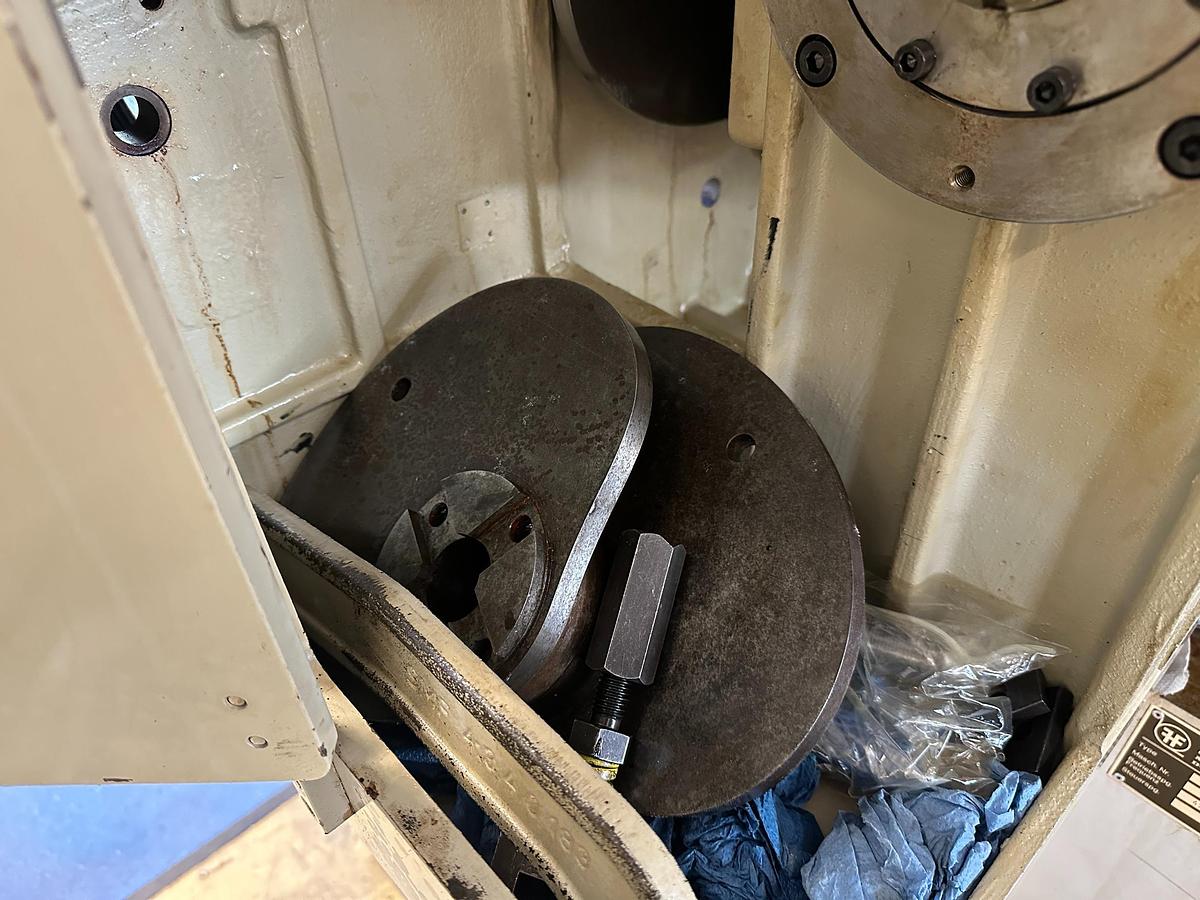

Mechanical Cam-Controlled Multislide System

The Finzer ZUB series uses a mechanically controlled cam-driven forming system.

Cam-controlled multislide machines are particularly effective for repeat production because the motions of the forming tools can be precisely coordinated with the press and material feed.

Typical operations can include the following operations within a single automated production sequence:

• Feeding
• Cutting
• Piercing
• Blanking
• Bending
• Folding
• Forming
• Coining
• Ejecting

Why Use a Multislide Machine?

A conventional power press primarily operates in one vertical direction. A multislide machine allows forming tools to move towards the workpiece from several different directions.

This can make it possible to manufacture complicated formed components in one continuous process.

Typical advantages include:

• Multiple forming operations in one machine
• Reduced secondary operations
• High production rates
• Excellent repeatability
• Efficient coil-fed production
• Reduced handling between processes
• Economical manufacture of large quantities
• Ability to produce complicated bends and forms

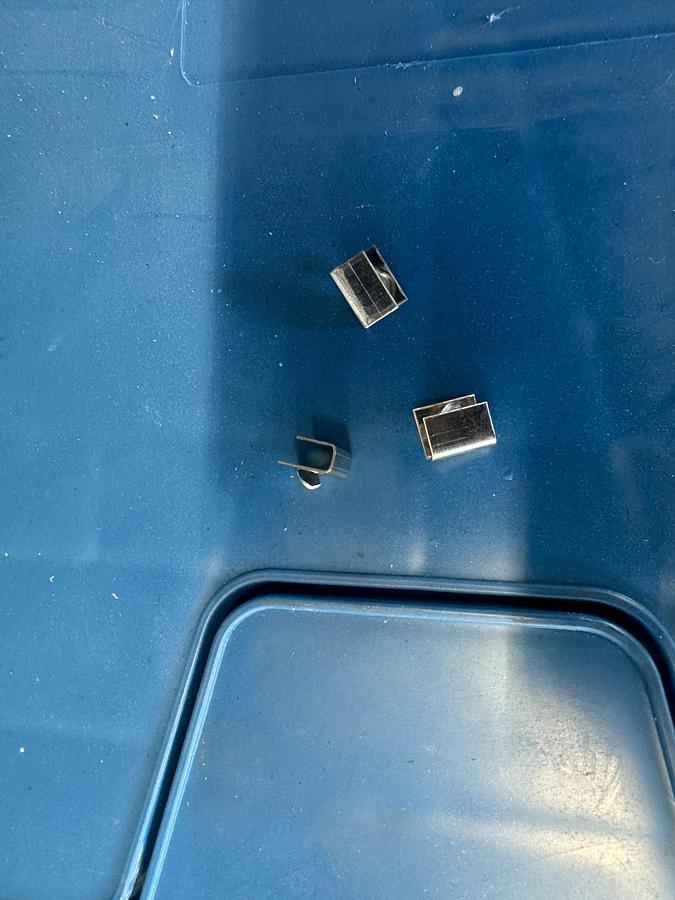

Typical Components & Applications

A Finzer ZUB 250 can be used for production of suitable:

• Metal clips
• Spring clips
• Electrical contacts
• Electrical components
• Retaining clips
• Brackets
• Fasteners
• Connectors
• Terminals
• Small pressings
• Wire forms
• Strip-formed components
• Automotive components
• Appliance components
• Hardware components
• Precision stamped and formed parts

It is particularly suited to components requiring a combination of punching, bending and forming operations.

Condition

This 1987 Finzer ZUB 250 is in very good condition.

The machine is offered complete with:

• 250kN / 25-tonne press unit
• Set of six forming slides
• Manual decoiler

The tooling arrangement and exact equipment supplied can be confirmed prior to purchase.

Finzer ZUB 250 – Established Industrial Multislide Design

The ZUB series has a long history in European stamping and forming production, and ZUB100, ZUB200 and ZUB250 machines remain in industrial use.

The platform was designed as a modular stamping and bending system, allowing press, feed and forming operations to be combined for specialised component production.

For manufacturers already operating Finzer or similar multislide equipment, the ZUB250 can provide additional production capacity without moving to a completely different manufacturing process.

Key Features

• 1987 Finzer ZUB 250
• Very good condition
• 250kN / 25-tonne press unit
• 6 forming slides
• Approx. 30kN forming capacity per slide
• Approx. 0–50mm forming slide stroke
• Approx. 250mm maximum feed length
• Approx. 60mm maximum strip width
• Approx. 3mm maximum wire diameter
• High-speed coil-fed production
• Up to approx. 400 strokes/minute depending on application
• Mechanical cam-controlled operation
• Suitable for punching, stamping, bending and forming
• Manual decoiler included
• Approx. 4,000kg machine weight
• Suitable for high-volume component production

Used Finzer ZUB 250 Multislide Machine for Sale

Used Machine Tools Ireland supplies used presses, multislide forming machines, coil processing machinery and engineering equipment throughout Ireland, Northern Ireland, the United Kingdom, Europe and worldwide.

Contact us if you are searching for a:

used Finzer ZUB 250, Finzer ZUB250 for sale, Finzer multislide machine, used multislide press, multi slide stamping machine, stamping and bending machine, wire forming machine, strip forming machine, 25 tonne multislide press, 250kN forming machine, six slide forming machine, coil fed stamping machine, used press Ireland, used forming machine UK or second-hand stamping equipment Europe.

Machine Summary

Manufacturer: Finzer

Model: ZUB 250

Year: 1987

Machine Type: Multislide Punching & Forming Machine

Condition: Very Good

Press Unit: Approx. 250kN / 25 Tonnes

Forming Slides: 6

Slide Capacity: Approx. 30kN each

Slide Stroke: Approx. 0–50mm

Maximum Feed Length: Approx. 250mm

Maximum Strip Width: Approx. 60mm

Maximum Wire Diameter: Approx. 3mm

Maximum Speed: Up to approx. 400 strokes/minute

Machine Weight: Approx. 4,000kg

Decoiler: Manual Decoiler Included

Please Note: All specifications, dimensions, capacities, speeds, weights and machine details quoted above are approximate and are provided for guidance only. Specifications and equipment can vary between individual Finzer ZUB 250 machines. Prospective purchasers should verify all important specifications, tooling, equipment and operating requirements prior to purchase.
